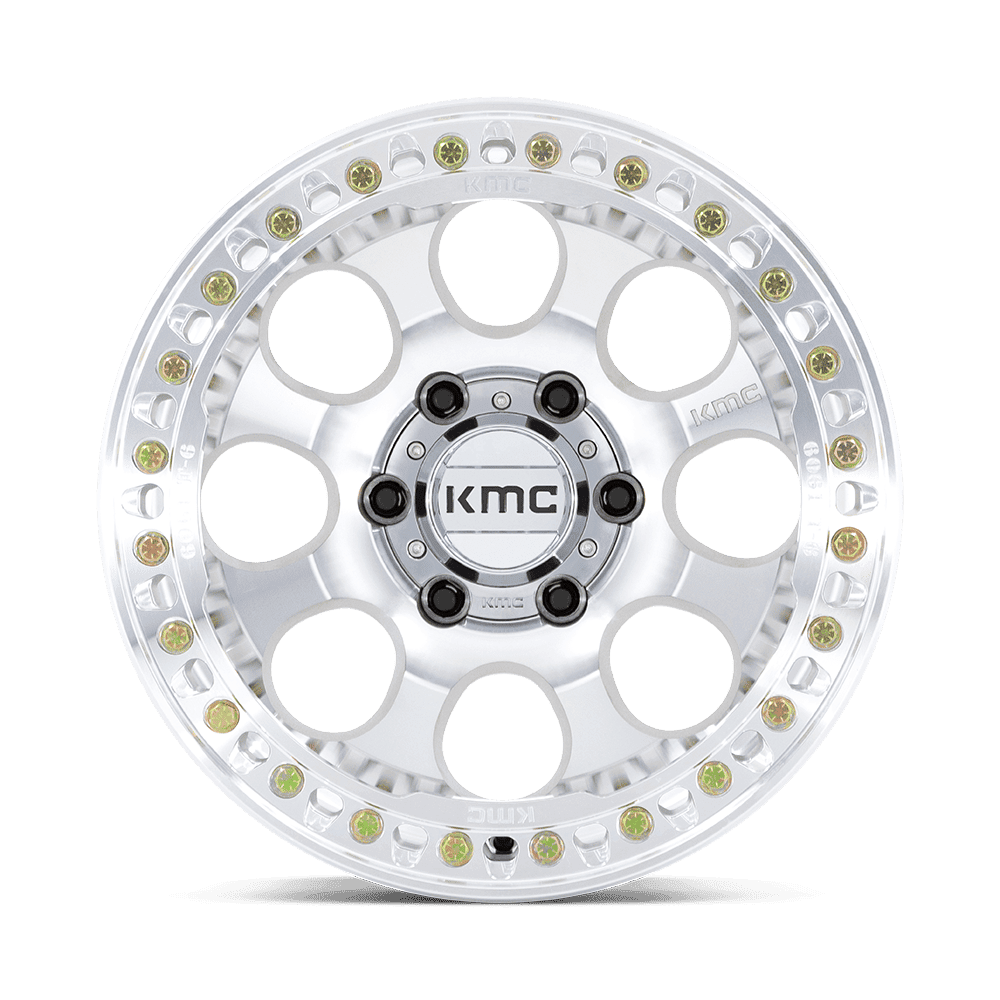

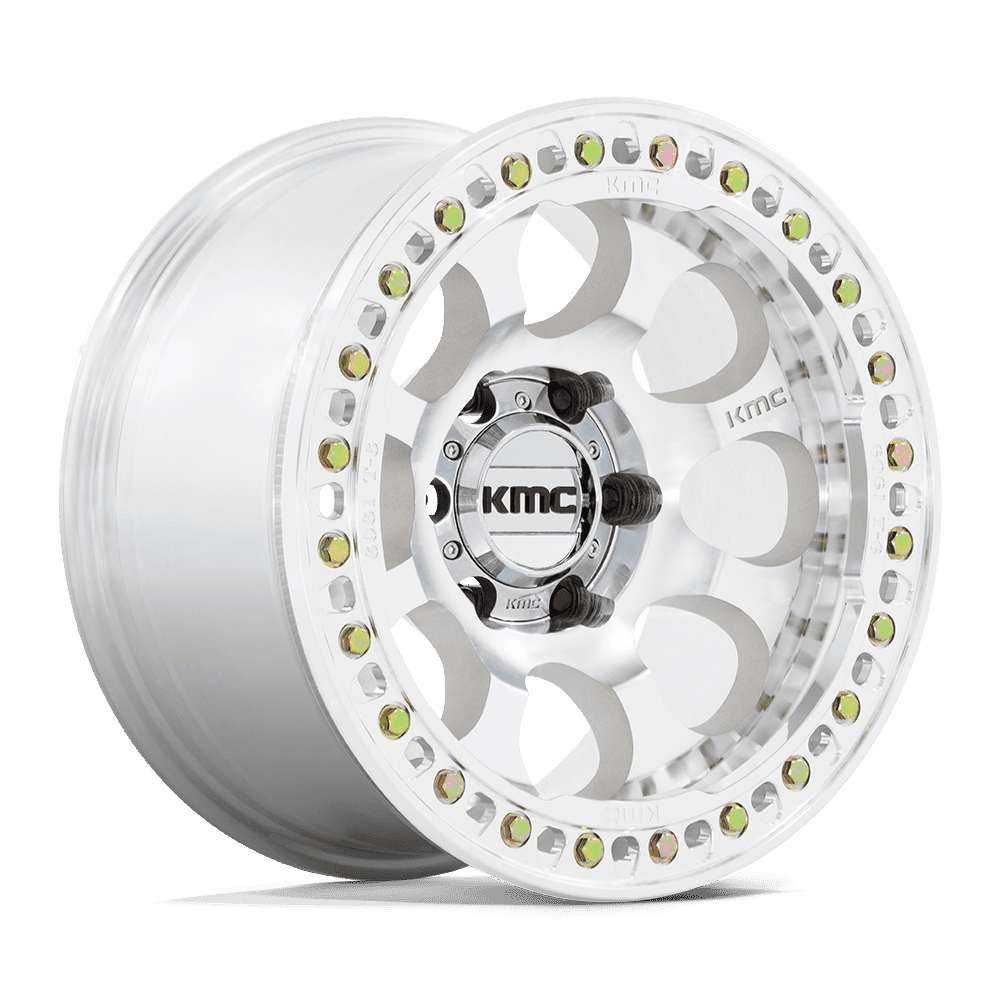

KMC Wheels RIOT BEADLOCK
Your off-road rampages beg for a wheel that can handle any terrain with uproarious good looks. Pairing distinctly contoured spokes with a deep concave design, the KM237 Riot Beadlock can handle itself in a scuffle and look good while doing so. Maximize your off-road performance with the KM237’s true beadlock construction, designed to prevent de-beading and tire slippage while running tires off-road at a low psi. Modern round-hole true beadlock design Forged 6061-T6 beadlock ring KMC Pro Cap V3 with metal ring Finishes include: Candy Red with Satin Black Ring, Machined, Machined Face with Satin Black Windows and Ring, Satin Black with Machined Ring Available sizes: 17×9 0, -12, and -38 5 & 6 lug applications
Call or request a quote for today’s price, mounting and balancing.
- Brands we stock and install
- Installed at our Silver Star Rd shop
- No-credit-needed financing
About the KMC Wheels RIOT BEADLOCK
Your off-road rampages beg for a wheel that can handle any terrain with uproarious good looks. Pairing distinctly contoured spokes with a deep concave design, the KM237 Riot Beadlock can handle itself in a scuffle and look good while doing so. Maximize your off-road performance with the KM237’s true beadlock construction, designed to prevent de-beading and tire slippage while running tires off-road at a low psi.
- Modern round-hole true beadlock design
- Forged 6061-T6 beadlock ring
- KMC Pro Cap V3 with metal ring
- Finishes include: Candy Red with Satin Black Ring, Machined, Machined Face with Satin Black Windows and Ring, Satin Black with Machined Ring
- Available sizes: 17×9 0, -12, and -38
- 5 & 6 lug applications
Specifications
| Brand | KMC Wheels |
|---|---|
| Type | KMC Wheels |
| Part number | 76ce07db3da9 |
| Product Name | RIOT BEADLOCK |
| Wheel Sizes available | 17X8.5, 17X9 |
| Hubs available | 108.0, 71.5, 87.1 |
| Bolt Patterns available | 6X139.7, 5X127, 6X135 |
| Offsets available | 0mm, -12mm, -38mm |
| Finishs available | CANDY RED W/ SATIN BLACK RING, MACHINED, MACHINED FACE SATIN BLACK WINDOWS & RING, SATIN BLACK W/ MACHINED RING |
Sizes & Specs (29 options)
Every size, bolt pattern, offset and finish we can order for the KMC Wheels RIOT BEADLOCK. Mention the line you want when you request a quote. Look up your vehicle’s wheel and tire size.
| Wheel Size | Hub | Bolt Pattern | Offset | Finish |
|---|---|---|---|---|
| 17X8.5 | 108.0 | 6X139.7 | 0mm | CANDY RED W/ SATIN BLACK RING |
| 17X8.5 | 108.0 | 6X139.7 | 0mm | MACHINED |
| 17X8.5 | 108.0 | 6X139.7 | 0mm | MACHINED FACE SATIN BLACK WINDOWS & RING |
| 17X8.5 | 108.0 | 6X139.7 | 0mm | SATIN BLACK W/ MACHINED RING |
| 17X8.5 | 71.5 | 5X127 | 0mm | CANDY RED W/ SATIN BLACK RING |
| 17X8.5 | 71.5 | 5X127 | 0mm | MACHINED |
| 17X8.5 | 71.5 | 5X127 | 0mm | MACHINED FACE SATIN BLACK WINDOWS & RING |
| 17X8.5 | 71.5 | 5X127 | 0mm | SATIN BLACK W/ MACHINED RING |
| 17X8.5 | 87.1 | 6X135 | 0mm | CANDY RED W/ SATIN BLACK RING |
| 17X8.5 | 87.1 | 6X135 | 0mm | MACHINED |
| 17X8.5 | 87.1 | 6X135 | 0mm | MACHINED FACE SATIN BLACK WINDOWS & RING |
| 17X8.5 | 87.1 | 6X135 | 0mm | SATIN BLACK W/ MACHINED RING |
| 17X9 | 108.0 | 6X139.7 | -12mm | CANDY RED W/ SATIN BLACK RING |
| 17X9 | 108.0 | 6X139.7 | -12mm | MACHINED |
| 17X9 | 108.0 | 6X139.7 | -12mm | MACHINED FACE SATIN BLACK WINDOWS & RING |
| 17X9 | 108.0 | 6X139.7 | -12mm | SATIN BLACK W/ MACHINED RING |
| 17X9 | 108.0 | 6X139.7 | -38mm | CANDY RED W/ SATIN BLACK RING |
| 17X9 | 108.0 | 6X139.7 | -38mm | MACHINED |
| 17X9 | 108.0 | 6X139.7 | -38mm | MACHINED FACE SATIN BLACK WINDOWS & RING |
| 17X9 | 108.0 | 6X139.7 | -38mm | SATIN BLACK W/ MACHINED RING |
| 17X9 | 71.5 | 5X127 | -12mm | CANDY RED W/ SATIN BLACK RING |
| 17X9 | 71.5 | 5X127 | -12mm | MACHINED |
| 17X9 | 71.5 | 5X127 | -12mm | MACHINED FACE SATIN BLACK WINDOWS & RING |
| 17X9 | 71.5 | 5X127 | -12mm | SATIN BLACK W/ MACHINED RING |
| 17X9 | 71.5 | 5X127 | -38mm | CANDY RED W/ SATIN BLACK RING |
| 17X9 | 71.5 | 5X127 | -38mm | MACHINED |
| 17X9 | 71.5 | 5X127 | -38mm | MACHINED FACE SATIN BLACK WINDOWS & RING |
| 17X9 | 71.5 | 5X127 | -38mm | SATIN BLACK W/ MACHINED RING |
| 17X9 | 87.1 | 6X135 | -12mm | MACHINED FACE SATIN BLACK WINDOWS & RING |
