KMC UTV

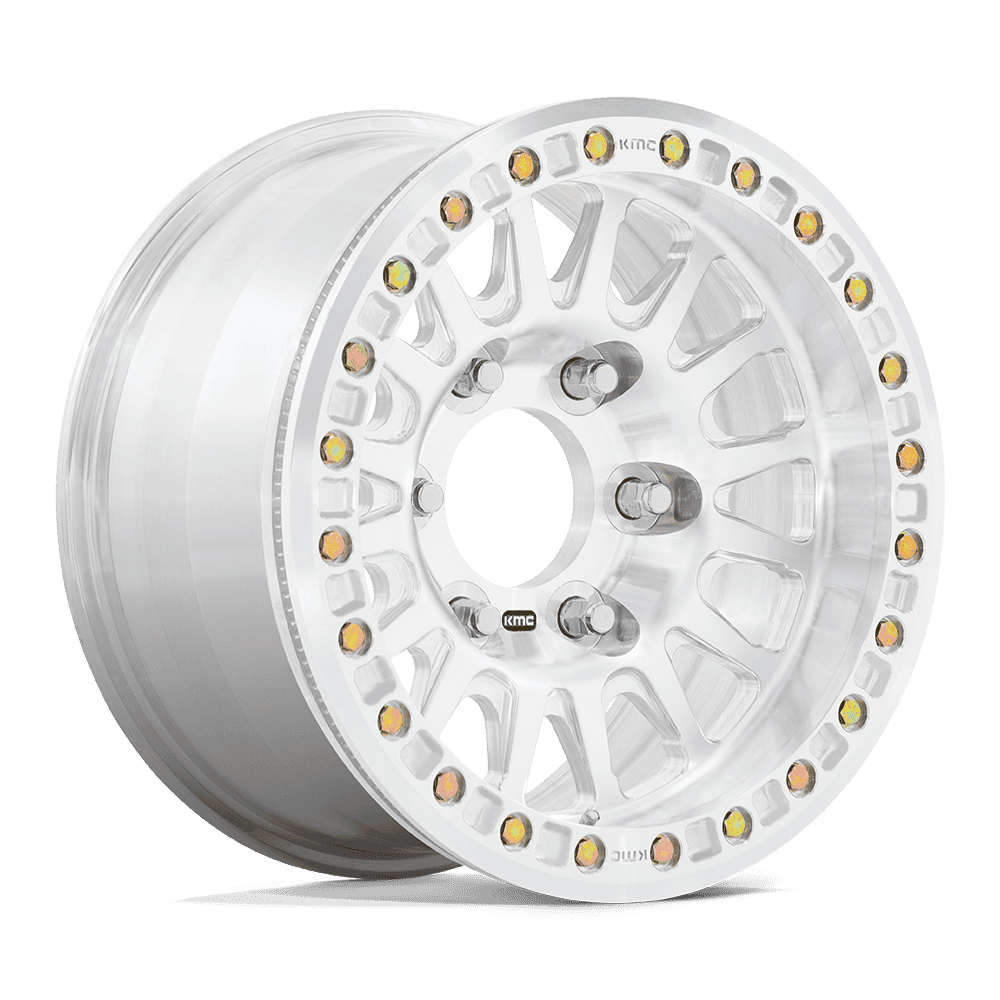

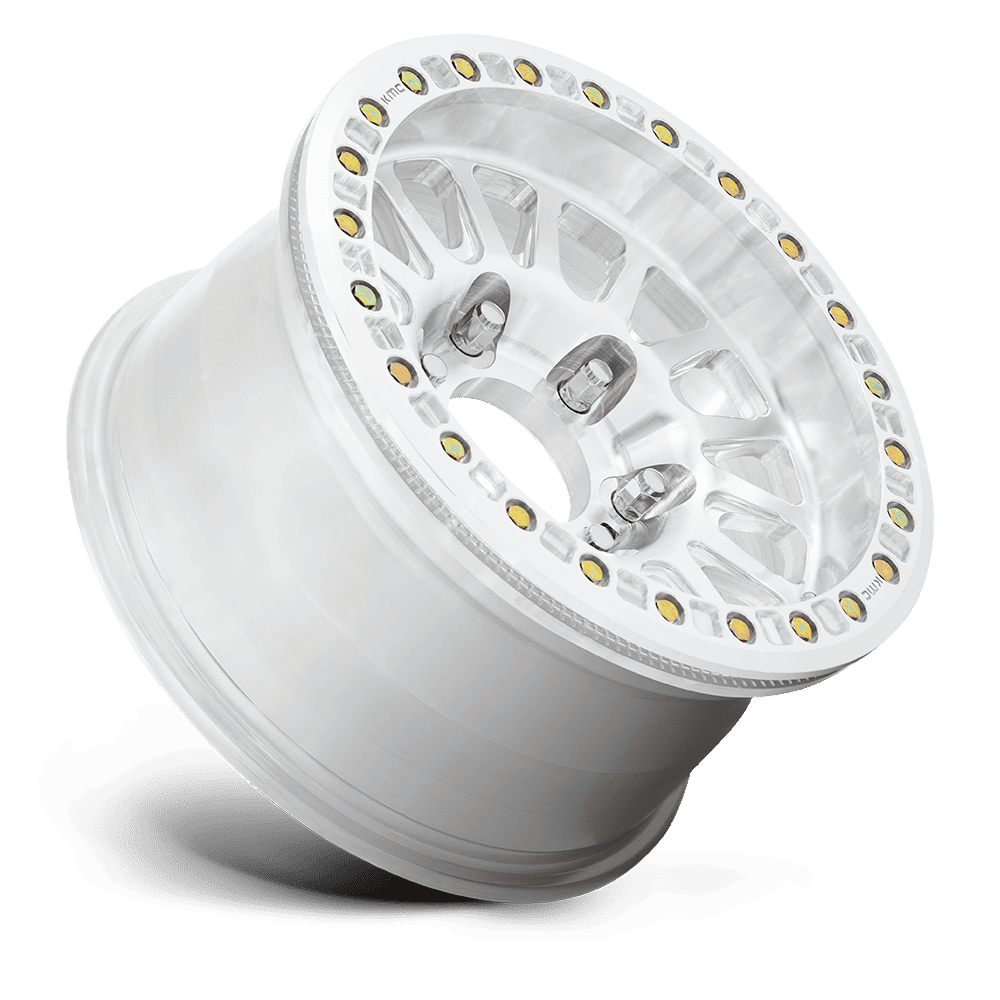

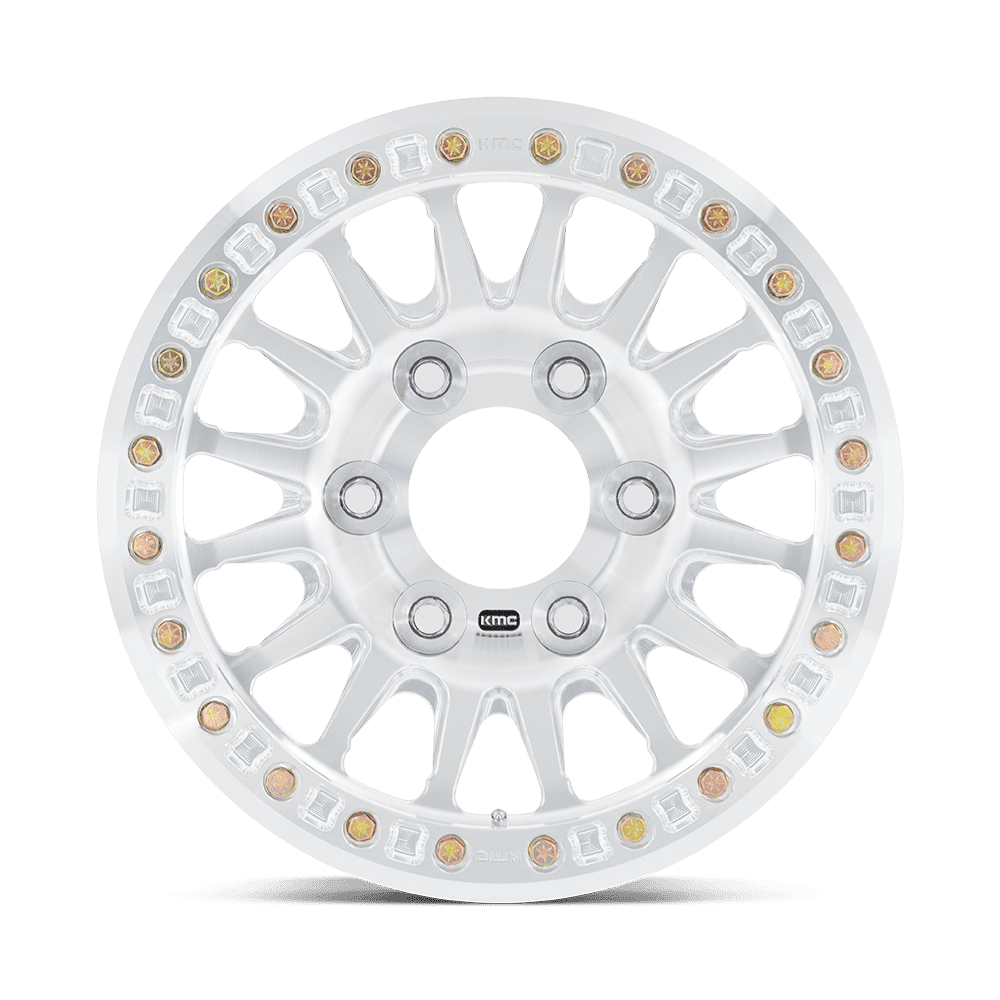

KMC Wheels IMPACT FORGED BEADLOCK
Call or request a quote for today’s price, mounting and balancing.
- Brands we stock and install
- Installed at our Silver Star Rd shop
- No-credit-needed financing
Specifications
| Brand | KMC UTV |
|---|---|
| Type | KMC Wheels |
| Part number | a326315c2e8c |
| Product Name | IMPACT FORGED BEADLOCK |
| Wheel Sizes available | 15X6, 17X9 |
| Hubs available | 100.3, 115.1, 96.0, 108.0, 125.1, 95.1 |
| Bolt Patterns available | 6X139.7, 4X156, 4X137, 5X139.7, 6X165.1, 8X165.1 |
| Offsets available | -38mm, 50mm, -12mm, 0mm, 25mm |
| Finishs available | RAW MACHINED FORGED, RAW MACHINED |
Sizes & Specs (11 options)
Every size, bolt pattern, offset and finish we can order for the KMC Wheels IMPACT FORGED BEADLOCK. Mention the line you want when you request a quote. Look up your vehicle’s wheel and tire size.
| Wheel Size | Hub | Bolt Pattern | Offset | Finish |
|---|---|---|---|---|
| 15X6 | 100.3 | 6X139.7 | -38mm | RAW MACHINED FORGED |
| 15X6 | 100.3 | 6X139.7 | 50mm | RAW MACHINED FORGED |
| 15X6 | 115.1 | 4X156 | -38mm | RAW MACHINED FORGED |
| 15X6 | 96.0 | 4X137 | -38mm | RAW MACHINED FORGED |
| 17X9 | 108.0 | 5X139.7 | -12mm | RAW MACHINED |
| 17X9 | 108.0 | 6X139.7 | -12mm | RAW MACHINED |
| 17X9 | 108.0 | 6X139.7 | 0mm | RAW MACHINED |
| 17X9 | 108.0 | 6X165.1 | -12mm | RAW MACHINED |
| 17X9 | 108.0 | 6X165.1 | 25mm | RAW MACHINED |
| 17X9 | 125.1 | 8X165.1 | -12mm | RAW MACHINED |
| 17X9 | 95.1 | 6X139.7 | 25mm | RAW MACHINED |
